Dimensions

Nissan X-Trail dimensions: exterior & interior

Technical Information

Interior space to sit up to 7, lifted high enough to climb over the most uneven ground, the X-Trail is built for family adventures in every way.

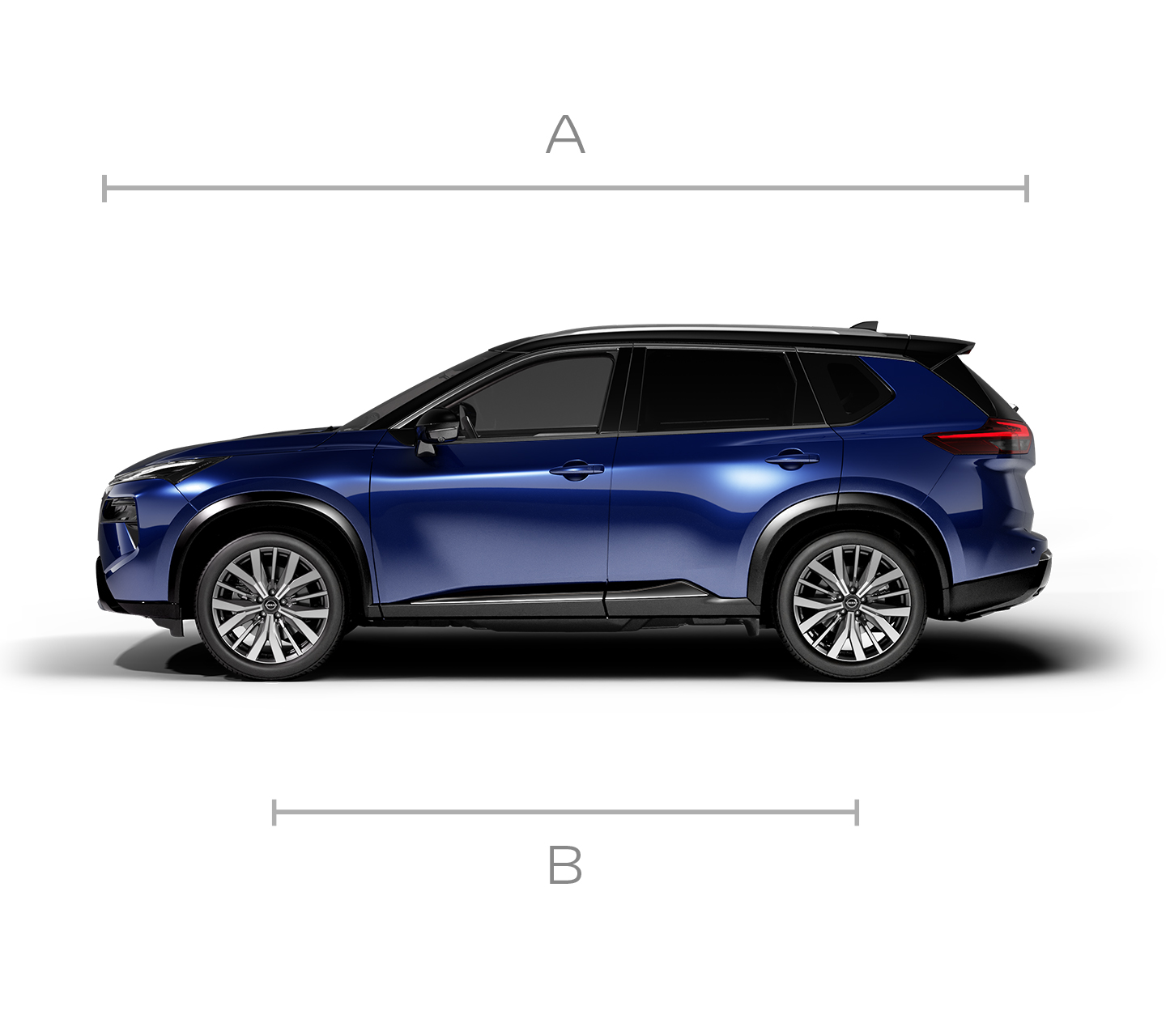

A - OVERALL LENGTH

4,690 MM

B - WHEELBASE

2,705 MM

MAX EXCLUDING LUGGAGE BOARDS

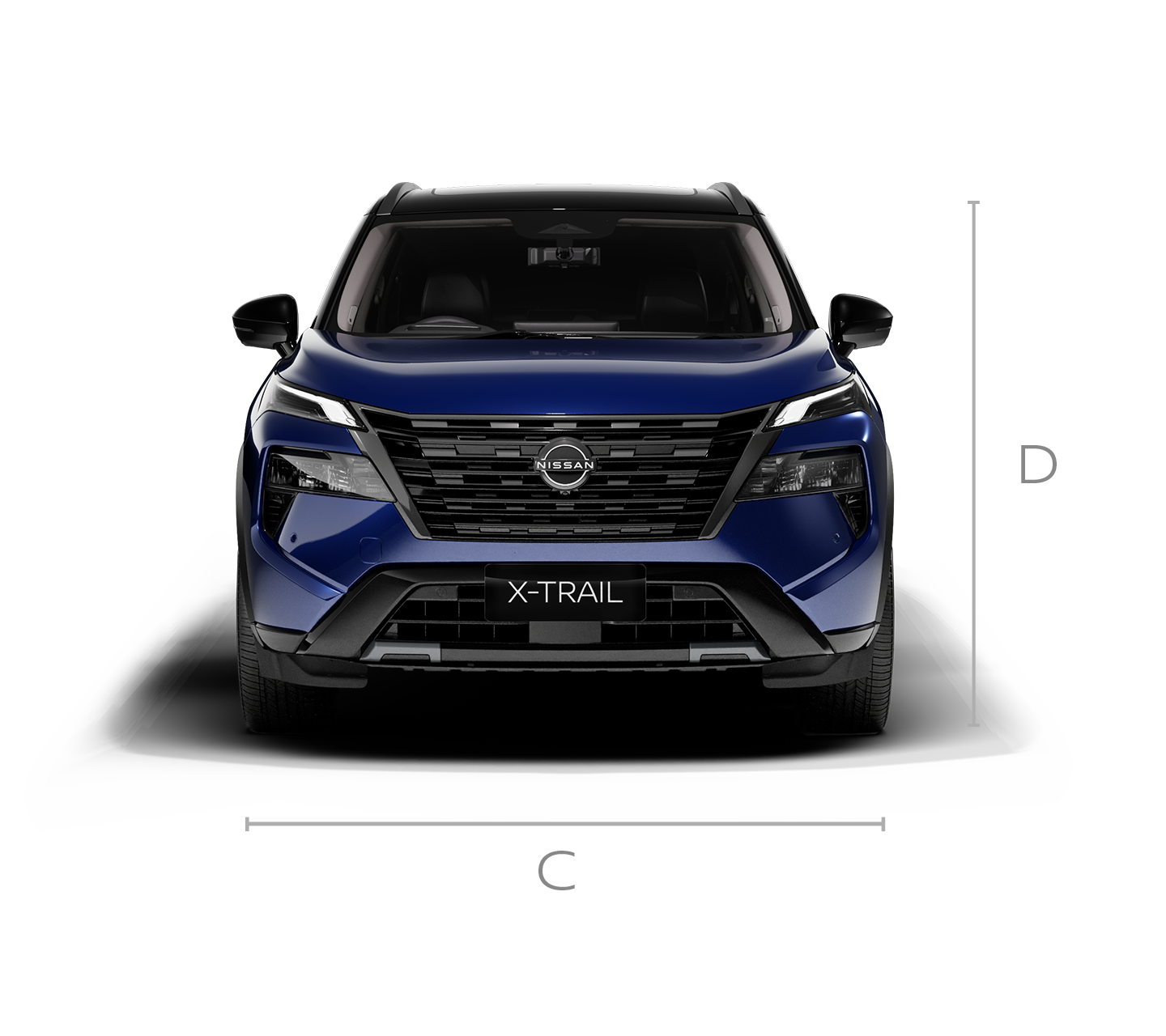

C - OVERALL WIDTH

2,065 MM

(INCLUDING MIRRORS)

D - OVERALL HEIGHT

1,725 MM

(UNLADEN)

DIMENSIONS EXTERIOR

	ST	ST-L	Ti	Ti-L	ST-L e-POWER	Ti e-POWER	Ti-L e-POWER
Overall length (mm)	4,690	4,690	4,690	4,690	4,690	4,690	4,690
Overall width (mm, including mirrors)	2,065	2,065	2,065	2,065	2,065	2,065	2,065
Overall height (mm, unladen)	1,725	1,725	1,725	1,725	1,725	1,725	1,725
Wheelbase (mm)	2,705	2,705	2,705	2,705	2,705	2,705	2,705
Track width (mm, front/rear)	1,585 / 1,590	1,585 / 1,590	1,585 / 1,590	1,585 / 1,590	1,585 / 1,590	1,585 / 1,590	1,575 / 1,580
Ground clearance unladen (mm, between axles)	205	205	205	205	187	187	187
Turning circle (m, curb-to-curb)	11.1	11.1	11.1	11.1	11.1	11.1	11.1

DIMENSIONS INTERIOR

	ST	ST-L	Ti	Ti-L	ST-L e-POWER	Ti e-POWER	Ti-L e-POWER
Head room (mm, first row/second row)	1,050 / 1,000	1,050 / 1,000	999 / 960	999 / 960	1,050 / 1,000	999 / 960	999 / 960
Leg room (mm, first row/second row)	1,095 / 892	1,095 / 892	1,095 / 892	1,095 / 892	1,095 / 892	1,095 / 892	1,095 / 892
Shoulder room (mm, first row second row)	1,451 / 1,422	1,451 / 1,422	1,451 / 1,422	1,451 / 1,398	1,451 / 1,422	1,451 / 1,422	1,451 / 1,398
Hip room (mm, first row/second row)	1,374 / 1,274	1,374 / 1,274	1,374 / 1,274	1,374 / 1,274	1,374 / 1,274	1,374 / 1,274	1,374 / 1,274
5-seat cargo capacity: second row upright (Litres, to roof)	585	585	585	585	575	575	575
7-seat cargo capacity: second row upright/third row folded flat (Litres, to roof)	465	465	n/a	n/a	n/a	n/a	n/a

ENGINE

	ST	ST-L	Ti	Ti-L	ST-L e-POWER	Ti e-POWER	Ti-L e-POWER
Engine Type	2.5 Litre DOHC 16-valve direct injection 4 cylinder petrol engine	2.5 Litre DOHC 16-valve direct injection 4 cylinder petrol engine	2.5 Litre DOHC 16-valve direct injection 4 cylinder petrol engine	2.5 Litre DOHC 16-valve direct injection 4 cylinder petrol engine	e-POWER with 1.5 Litre 16-valve direct injection 3 cylinder petrol engine	e-POWER with 1.5 Litre 16-valve direct injection 3 cylinder petrol engine	e-POWER with 1.5 Litre 16-valve direct injection 3 cylinder petrol engine
Powertrain	Petrol	Petrol	Petrol	Petrol	e-POWER	e-POWER	e-POWER
Number of Cylinders	4	4	4	4	3	3	3
Fuel type	Petrol	Petrol	Petrol	Petrol	Petrol (e-POWER)	Petrol (e-POWER)	Petrol (e-POWER)
Fuel consumption (FWD/4x4, Litres/100km combined cycle) ^Δ	7.4-7.8	7.4-7.8	7.8	7.8	6.1	6.1	6.1
CO2 emission (g/km combined cycle) ^Δ	174-183	174-183	183	183	139	139	139
Fuel requirement (minimum/recommended, RON)	91/91	91/91	91/91	91/91	91/95	91/95	91/95
Seating capacity	5/7	5/7	5	5	5	5	5

WEIGHTS (FWD/4X4)

	ST	ST-L	Ti	Ti-L	ST-L e-POWER	Ti e-POWER	Ti-L e-POWER
Gross Vehicle Mass •	2,040/2,295	2,040/2,295	2,135	2,135	2,380	2,380	2,380
Kerb mass † (kg)	1,535/1,650	1,571/1,670	1,670	1,678	1,855	1,855	1,891
Maximum braked towing capacity ‡ (kg)	2,000	2,000	2,000	2,000	1,650	1,650	1,650
Maximum unbraked towing capacity‡ (kg)	750	750	750	750	750	750	750
Maximum roof load (kg)	100	100	100	100	100	100	100

TAKE THE NEXT STEP

^ΔFigures tested in accordance with ADR81/02 (combined test). Figures stated for the purposes of comparison amongst vehicles only. Actual fuel consumption and CO2 emissions depends on factors such as traffic conditions, vehicle condition, how you drive and any accessories fitted.

^•Gross Vehicle Mass is the maximum loaded mass of a vehicle.

^†Kerb mass is the unladen mass of the vehicle with full tank of fuel without any accessories fitted.

^‡Towing capacity is subject to towbar/towball capacity and is based on the fitment of a Genuine Nissan towbar. Towing capacity figure described is a maximum figure. Actual towing capacity depends on the laden mass of the vehicle, driving conditions, fitment of any accessories or towing equipment limitations including the maximum towball download.
