ARIYA Dimensions | Exterior & Interior

Dimensions

Nissan ARIYA dimensions: exterior and interior

Technical Information

With a wide stance and a lounge-like interior, feel secure and comfortable throughout your journey.

ARIYA EVOLVE model shown throughout unless otherwise stated.

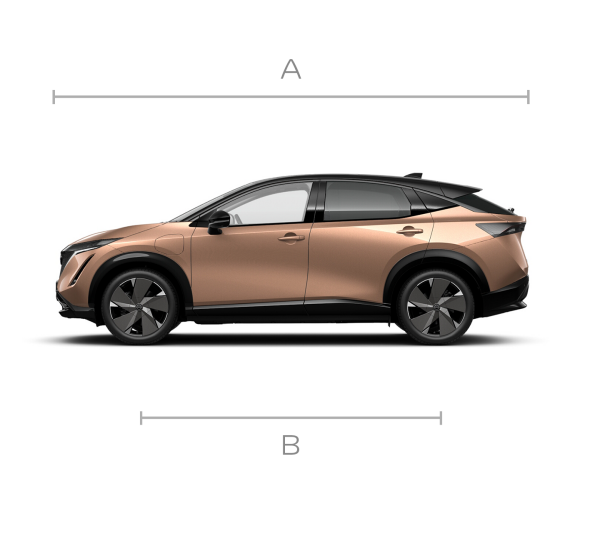

A - OVERALL LENGTH

4,595 MM

B - WHEELBASE

2,775 MM

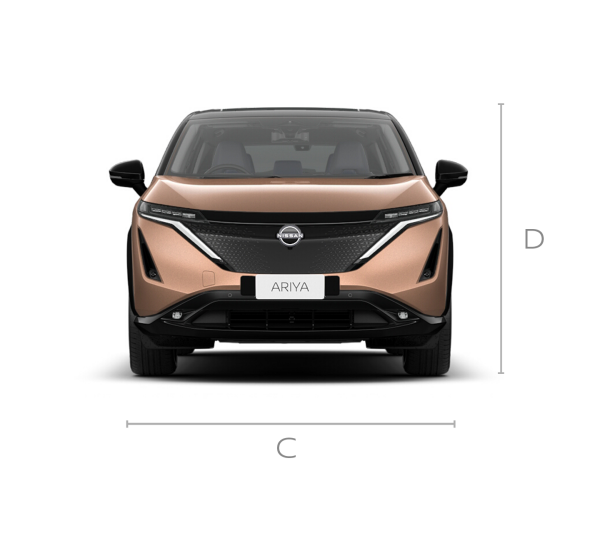

C - OVERALL WIDTH

2,172 MM

(WITH MIRRORS)

D - OVERALL HEIGHT

1,660 MM

Nissan ARIYA top view illustrations showing boot capacity

E - BOOT CAPACITY, UP TO

408-466 L

MAX EXCLUDING LUGGAGE BOARDS

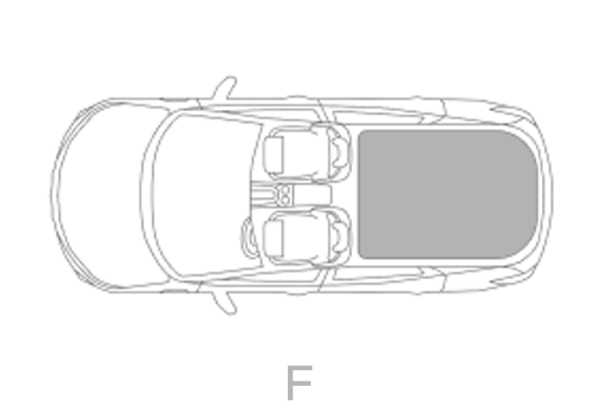

Nissan ARIYA top view illustrations showing boot capacity with folded seats

F - MAX WITH FOLDED SEATS

1,280 -1,350 L

WEIGHTS & DIMENSIONS

	63kWh ENGAGE	63kWh ADVANCE	87kWh ADVANCE+	87kWh e-4ORCE EVOLVE
Gross vehicle weight (kg)^•	2,350	2,350	2,505	2,655
Max trailer weight- braked (kg)^‡	750	750	750	1,500
Max trailer weight- unbraked (kg)^‡	750	750	750	750
Overall length (mm)	4,595	4,595	4,595	4,595
Overall width incl. mirrors (mm)	2,172	2,172	2,172	2,172
Overall height (mm)	1,660	1,660	1,660	1,660

SPECIFICATIONS

	63kWh ENGAGE	63kWh ADVANCE	87kWh ADVANCE+	87kWh e-4ORCE EVOLVE
Battery size	63 kWh	63 kWh	87 kWh	87 kWh
WLTP combined range⁽⁵⁷⁾	Up to 385 km	Up to 385 km	Up to 504 km	Up to 487km
Acceleration [0-100 km/h] - Top Speed	8.0 s - 160 km/h	8.0 s - 160 km/h	8.1 s - 200 km/h	5.6 s - 200 km/h
Maximum power & torque	160 kW - 300 Nm	160 kW - 300 Nm	178 kW - 300 Nm	290 kW - 600 Nm
Electricity consumption - WLTP combined cycle	184 Wh / 100 km	184 Wh / 100 km	191 Wh / 100 km	208 Wh / 100 km
Peak Charging	AC 7.4 kW / DC 130 kW	AC 7.4 kW / DC 130 kW	AC 7.4 kW; 22 kW (optional) / DC 130 kW	AC 7.4 kW or 22 kW / DC 130 kW

LUGGAGE CAPACITY PER GRADE

	63kWh ENGAGE	63kWh ADVANCE	87kWh ADVANCE+	87kWh e-4ORCE EVOLVE
Luggage capacity (Seats Down), litres	1,350	1,350	1,350	1,350
Luggage capacity (Seats Up), litres	466	466	466	408

TAKE THE NEXT STEP

^• Gross Vehicle Mass is the maximum loaded mass of a vehicle.

^‡Maximum braked towing capacity of 750kg for 2WD and 1500kg for AWD (e-4ORCE). Towing capacity is subject to towbar/towball capacity and is based on the fitment of a Genuine Nissan towbar. Towing capacity figure described is a maximum figure. Actual towing capacity depends on grade, specification, powertrain, the laden mass of the vehicle, driving conditions, fitment of any accessories or towing equipment limitations including the maximum towball download. Refer to the owner’s manual for details.

⁽⁵⁷⁾ Indicative driving range using the Worldwide Harmonised Light Vehicle Test Procedure (WLTP). Figures obtained after the battery was fully charged. Figures stated for the purposes of comparison amongst vehicles tested to the same technical procedures only. Actual real world driving range may vary depending on factors such as battery age and condition, driving style, use of heating/cooling, traffic conditions, weather conditions, any accessories fitted and vehicle load.
